Alphabet Components Encapsulated Transformer with Dual 6V Secondaries

Item number 2060180M Share Write a review
New
Alphabet Components Encapsulated Transformer with Dual 6V Secondaries



Description

This encapsulated transformer delivers a robust 18VA power output with dual 6V secondaries, each capable of supplying 1.667A. Engineered for efficiency and reliability, it's perfect for powering low-voltage devices, ensuring stable operation in diverse applications.

Its encapsulated design provides superior insulation and protection against environmental factors, enhancing durability and safety. Compact and lightweight, it seamlessly integrates into tight spaces, exemplifying versatility in design and function.

Whether used in educational electronics projects or intricate circuitry setups, this transformer stands as a reliable power source. Experience consistent energy conversion, minimizing energy loss while maximizing performance.

Properties

Brand information
Brand Alphabet Components
Model2060180M
Other
Primary voltage 230V ± 10%, 50/60Hz
Insulation resistance The text ">5Mohm / 500Vcc" is a technical specification and would be stated the same way in English. It appears to refer to electrical resistance and voltage, meaning "greater than 5 megaohms under 500 volts DC."
"Electric strength" Greater than 5kV minimum.
Max temperature for class E 95°C
Secondary voltage tolerance +7% - 3% at 230V and max load

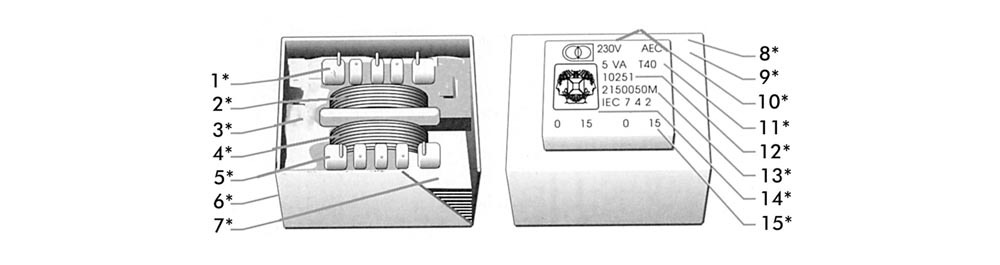

1* Double sink
2* Primary winding
3* Encapsulation in epoxy resin
4* Secondary winding
5* Connection pins
6* Housing in polyamide
7* "magnetic core"
8* The text "veiligheidstransfo" could be translated informally to "safety transformer" in English. If you're referring to a concept or more context is required, let me know!
9* "Short-circuit safe"
10* Primary voltage
11* Nominal power / nominal temperature
12* Manufacturer's reference
13* Order code
14* Approval:
15* Nominal secondary voltages
Connection data
Voltage 0 V
Power 0 W
Datasheet
Current 0 A
€ 2,45€ 2,00 Excl. VAT (NL)
Out of stock
Alphabet Components Encapsulated Transformer with Dual 6V Secondaries € 2,45
Shipped from € 3,50 (NL) 30 days cooling-off Excellent service
