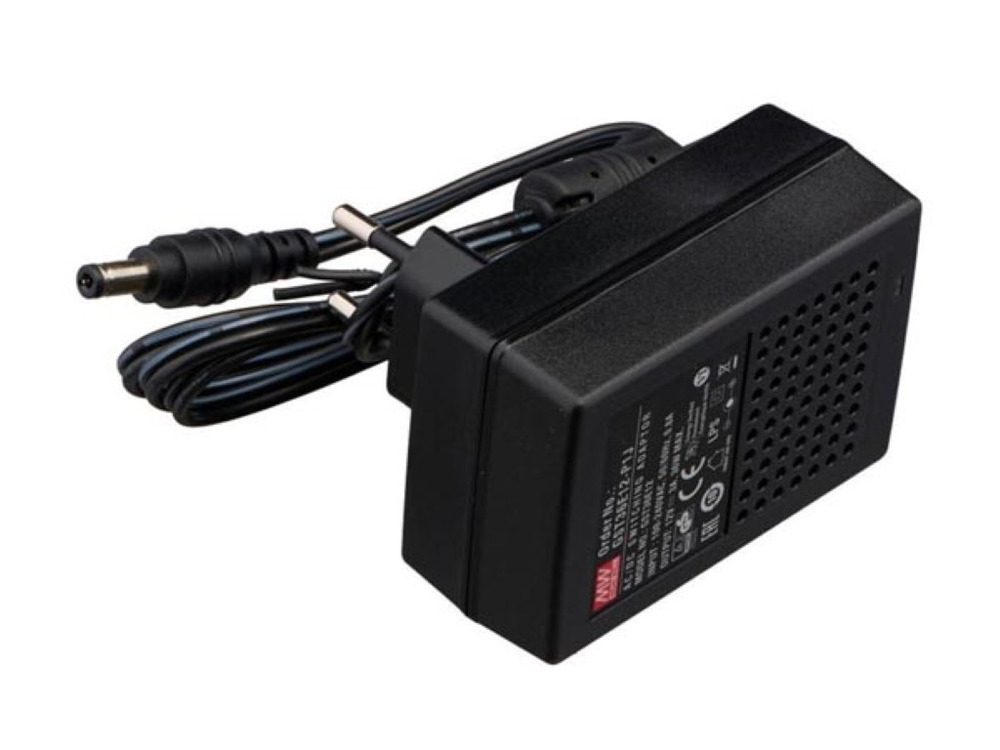

Mean well Compact 36W Switching Power Supply, 12V 3A Output
New
Description
This compact switching power supply is designed to efficiently power your IT equipment, offering a single output of 12 VDC with a current of 3 A, providing a total of 36 W.
Benefits include energy efficiency, a lightweight design for easy integration, and improved device stability by ensuring consistent power delivery.
Perfect for applications requiring reliable power like routers, modems, and other network devices. Its compact size makes it ideal for limited spaces, providing versatility without compromising performance.
Built using high-quality components, this power supply reduces energy loss and enhances the lifespan of connected equipment. Its robust construction offers protection against power surges, safeguarding your valuable IT infrastructure.
Properties
Brand information
| Brand | Mean well |
| Model | MWGST36E12-P1J |
Other
| Cable length | Sure, please provide the text you want translated to English. |
| Insulation resistance | Input to output: 100 Mohm / 500 VDC / 25 °C / 70% RH |
| Isolation voltage | Entrance to exit: 4242 VDC |
| Working temperature | -22 to +158 °F |
| MTBF stands for "Mean Time Between Failures." | At least 692,300 hours, MIL-HDBK-217F (25 °C) |
| Dimensions (L x W x H) | 79 x 54 x 33 mm |
| Output voltage | 12 VDC |
| Frequency range | "47 - 63 Hz" doesn't require translation because "Hz" (Hertz) is a universal unit of frequency used worldwide. However, if you want to describe it in an informal way, you might say something like "between 47 and 63 Hertz." |
| Nominal current | Sure, the text "3 A" doesn't provide enough context for translation. Could you please provide more details or clarify the text you'd like translated into English? |
| Humidity level | 20 - 90% RH non-condensing |
| Wrinkle & noise (max) | 100 mVp-p |
| "Stress tolerance" | +/- 3.0 % |
| The term "Lijnregulatie" translates to "Line Regulation" in English. | +/- 1 % |
| Load regulation | +/- 3 % |
| Typical performance | 87.5 % |
| AC current (typ.) | The current is 0.7 amps at 100 volts AC. |
| Inrush current (typical) | 70 Amps at 230 Volts AC |
| Temperature coefficient | ±0.03%/°C (32 - 122°F) |
| Safety standards | Approved according to TÜV EN60950-1 |
| Max. output current | The text "0 - 3 A" doesn't seem to be in a language that requires translation to English, or it's possibly a score or a code. Could you clarify or provide more context for what you're looking to translate? |
| "Lekstroom" is a Dutch name for a region or administrative area, specifically in the Netherlands. Since it's a proper noun and doesn't have a direct translation, you would typically use "Lekstroom" in English as well. If you're referring to a general concept within the region, you might need to provide more context for an accurate and informal translation. | 0.25 mA / 240 VAC |
| Type of protection (overload) | "Hiccup mode", automatic recovery after the issue is resolved |
| Type of protection (overvoltage) | A clamp circuit with a Zener diode |
| Sure, the translation of "Trilling" to English is "Thrilling." If you meant to translate something else, please provide more context or text. | 10 - 500 Hz, 2G for 10 minutes per cycle, over 60 minutes along the X, Y, and Z axis. |
| EMC emission | Complies with EN55032 Class B; EN61000-3-2,3 Class A |
| EMC immunity | Complies with EN61000-4-2,3,4,5,6,8,11 |
| Temperature | Sure! The translation is: -22°F to 122°F. |
| Tolerance of the output voltage | ± 10 % |
Connection data
| Power | 0 W |
| Power plug | ID 2.1 x OD 5.5 mm |
Datasheet
| Bulletin | -40 to +85 °C, 10 - 95% humidity |
| weight | Kg |
€ 24,50€ 20,25 Excl. VAT (NL)
