Pololu 8-Channel QTRX Sensor Array for Romi/TI-RSLK MAX (Headers Not Soldered)

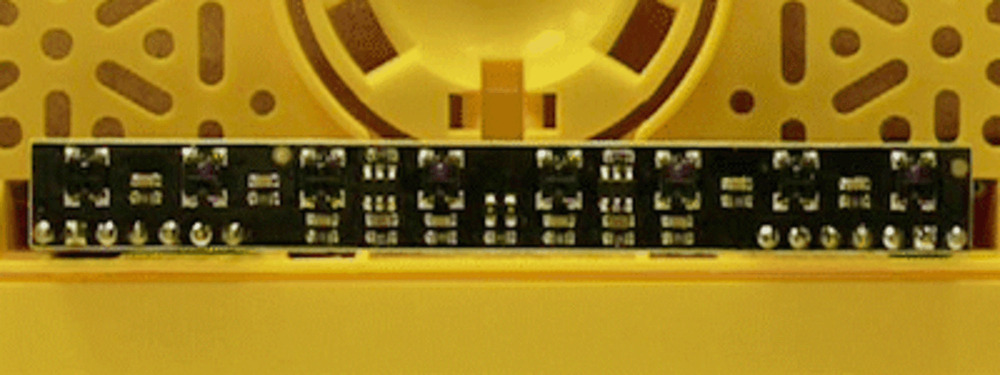

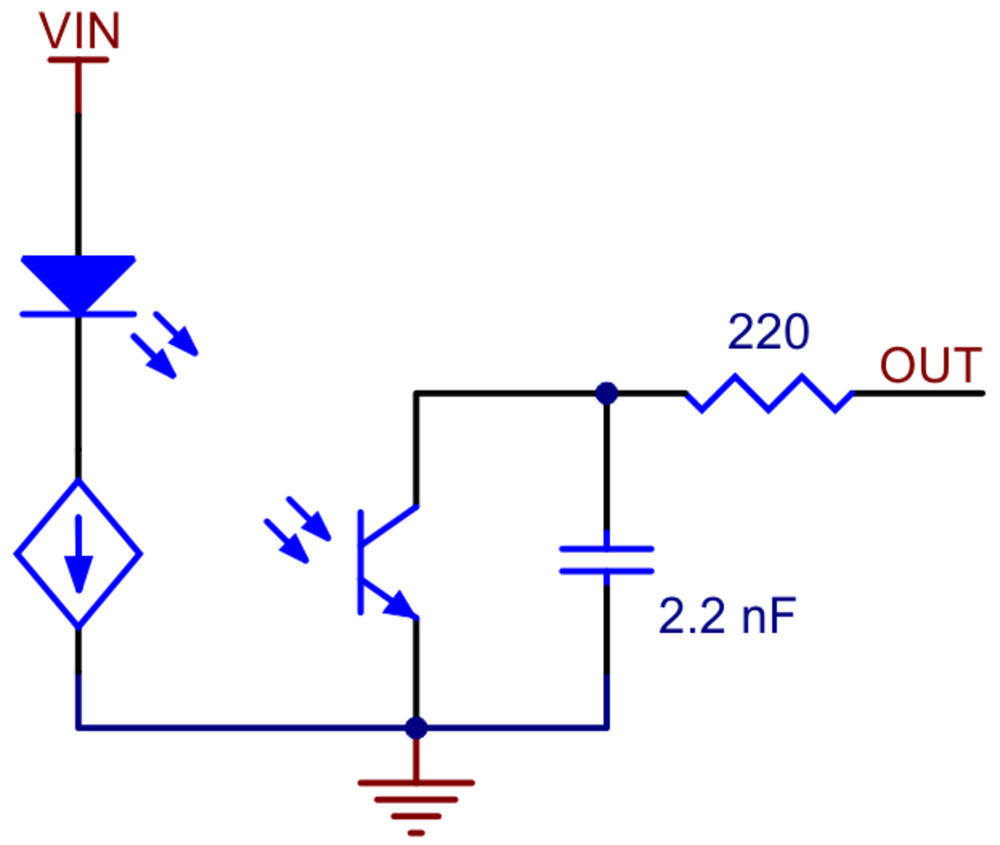

The 8-Channel QTRX Sensor Array is a versatile tool for enhancing the line-following capabilities of Romi or TI-RSLK MAX robots. Designed for seamless integration with the TI-RSLK Chassis Board v1.0, it features a linear arrangement of eight reflectance sensors. Each sensor includes a dimmable infrared emitter and a phototransistor, allowing it to detect reflected light. The sensors are spaced at 9.5 mm intervals, making them ideal for tracking lines made from 19 mm black electrical tape on a contrasting white surface.

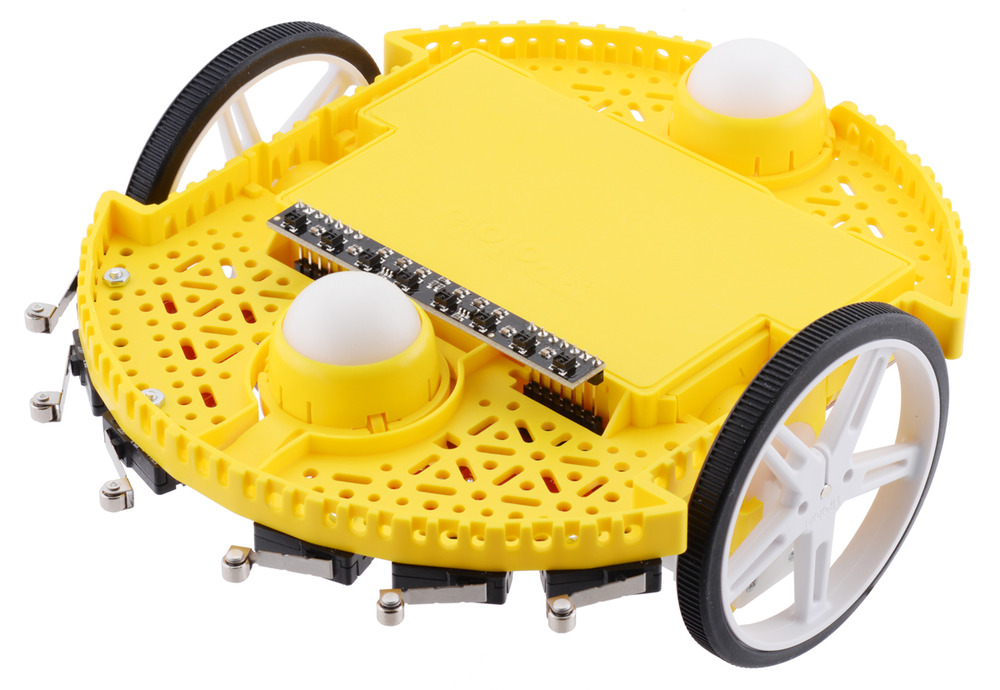

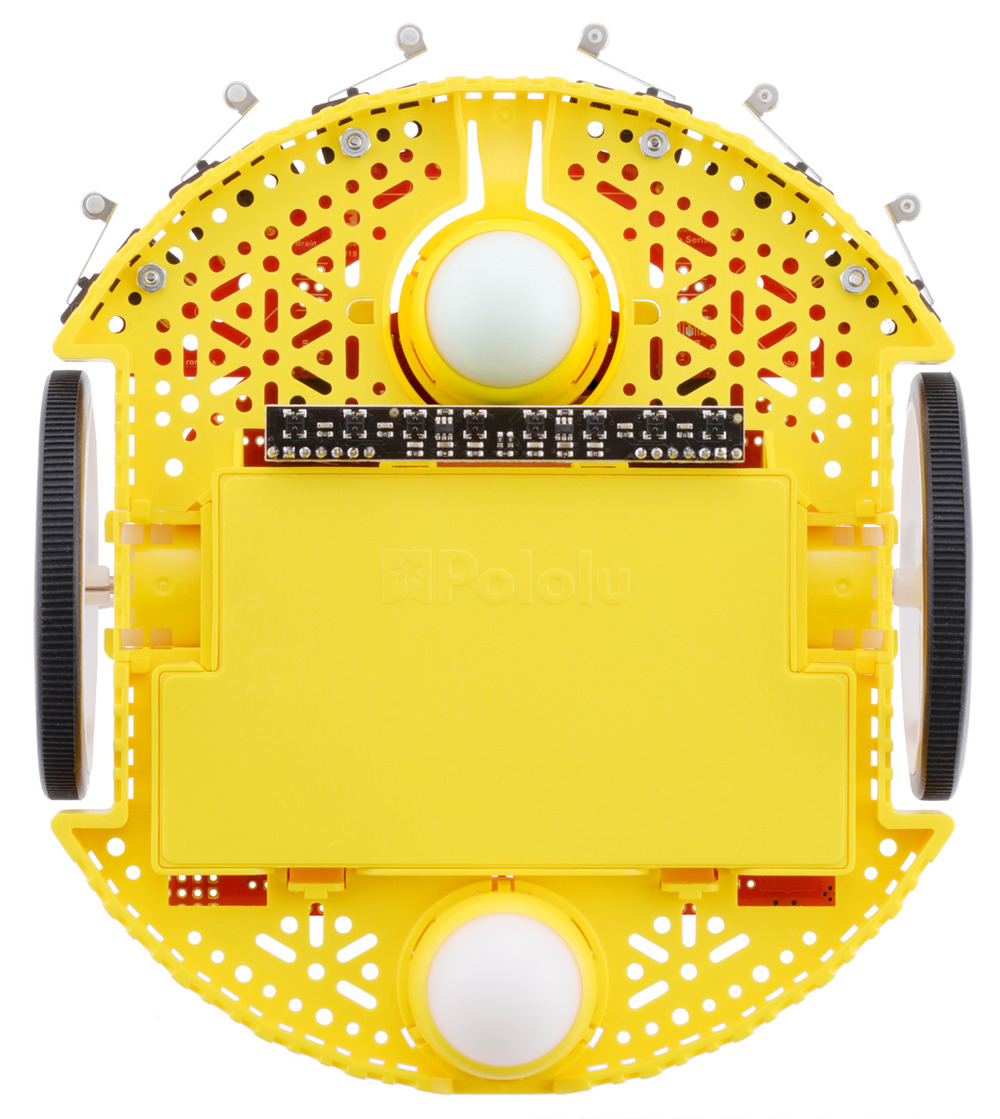

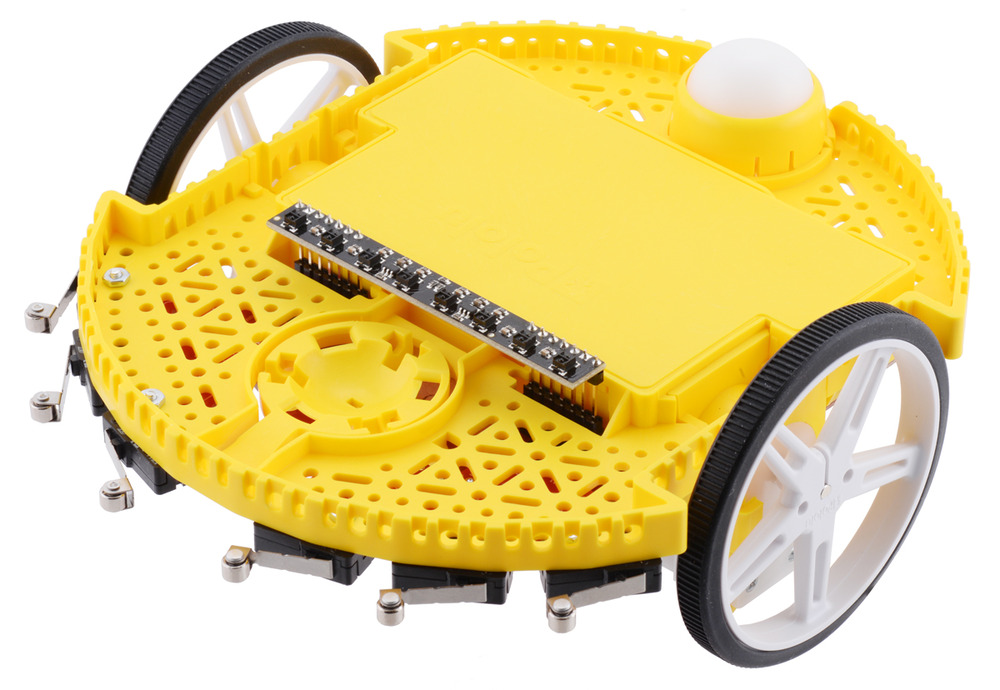

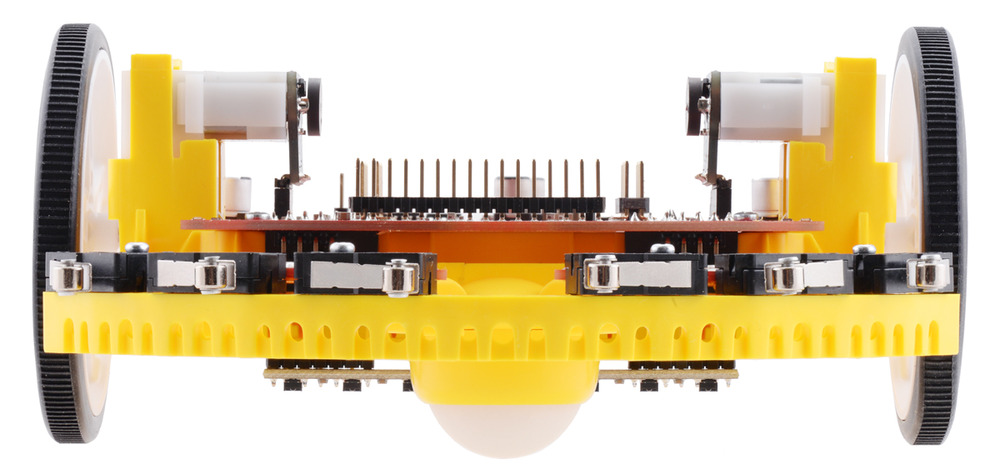

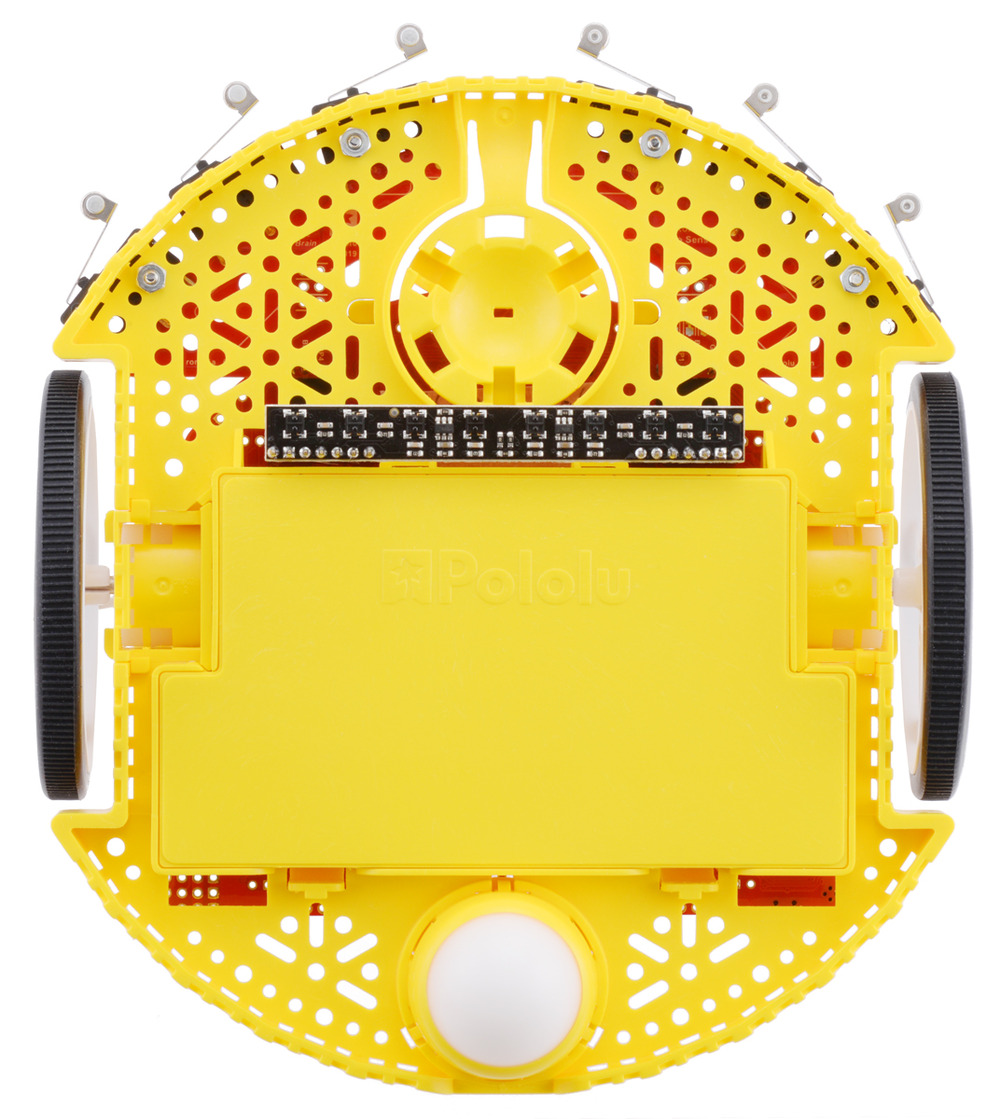

Ideal for robotics enthusiasts, this sensor array offers easy integration and precise line-following capabilities. By plugging into the female headers on the underside of the Chassis Board, it positions itself strategically in front of the battery box and behind the optional front ball caster. This setup is perfect for creating robots that can navigate complex courses with precision and speed.

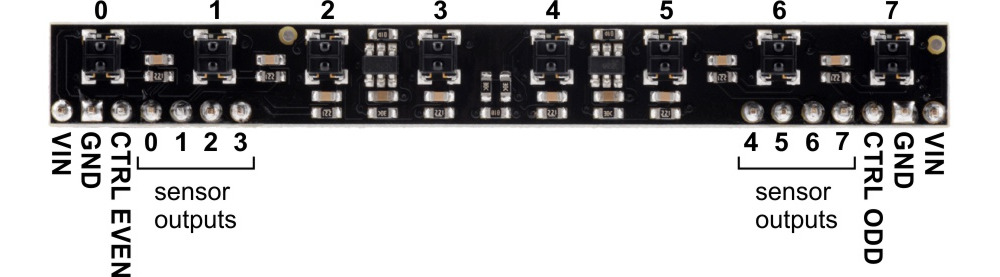

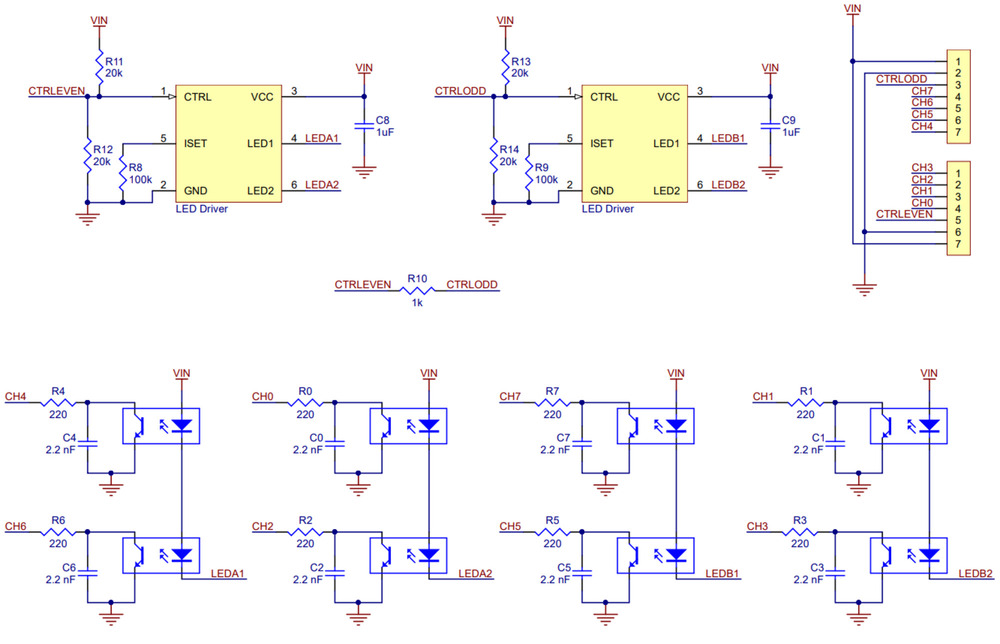

One of the standout features of this sensor array is its ability to operate efficiently with low power consumption. The IR emitters maintain a constant current, ensuring consistent performance. The array's advanced design allows for independent control of odd and even emitters through the CTRL pins, offering flexibility in various applications. Additionally, the dimming feature provides 32 levels of brightness control, enabling customized responses to different lighting conditions.

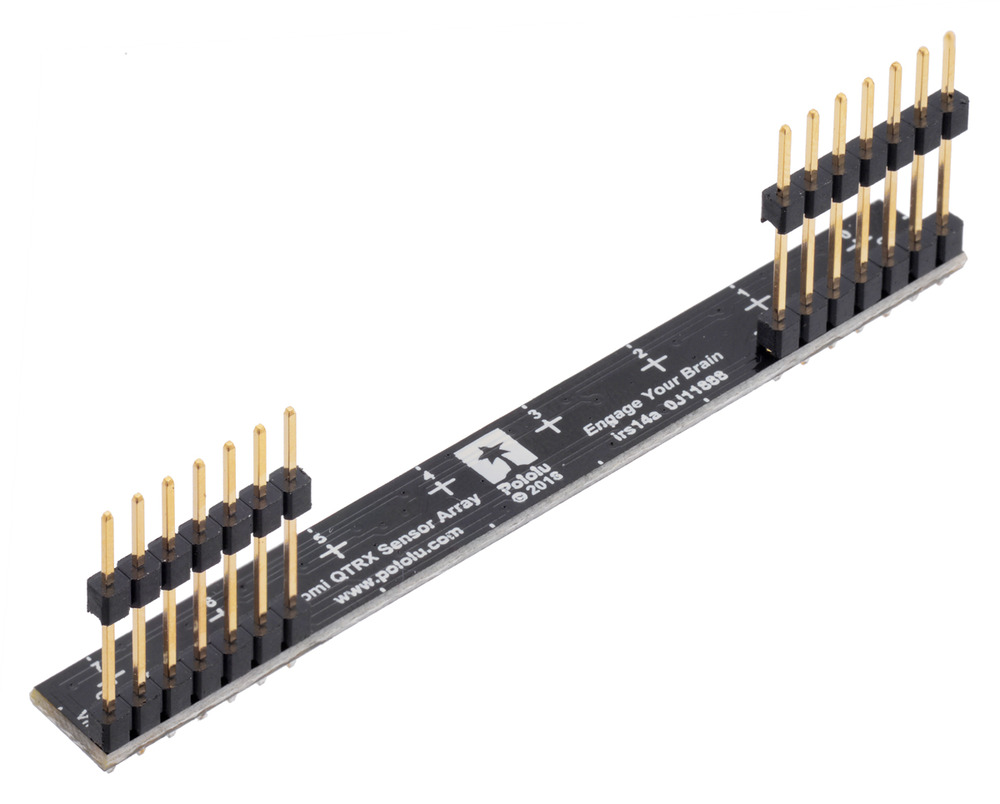

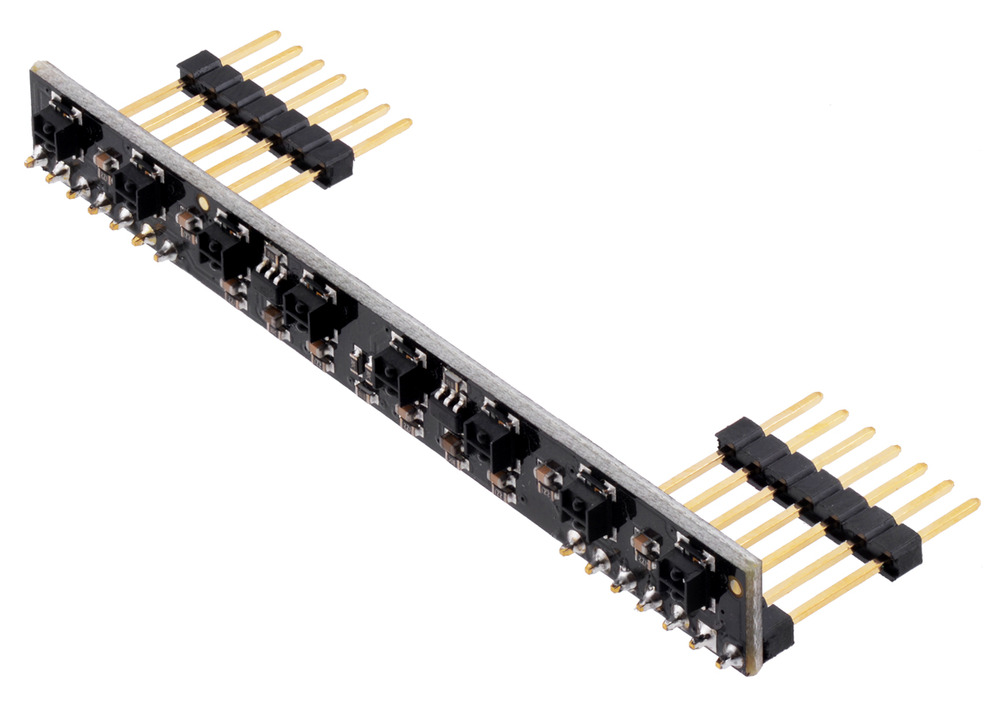

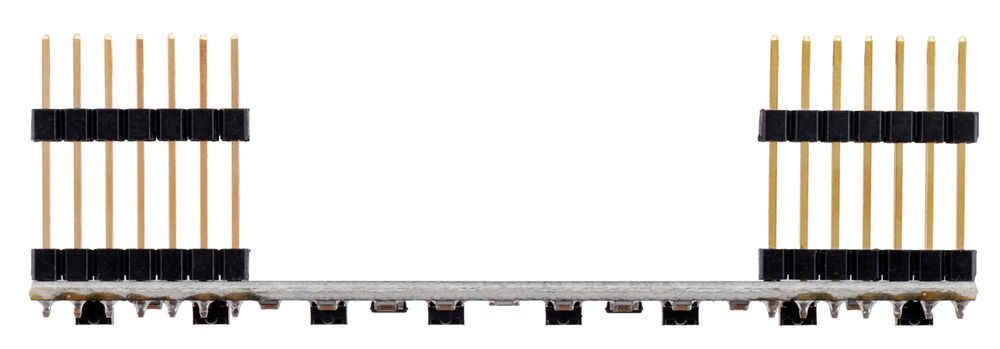

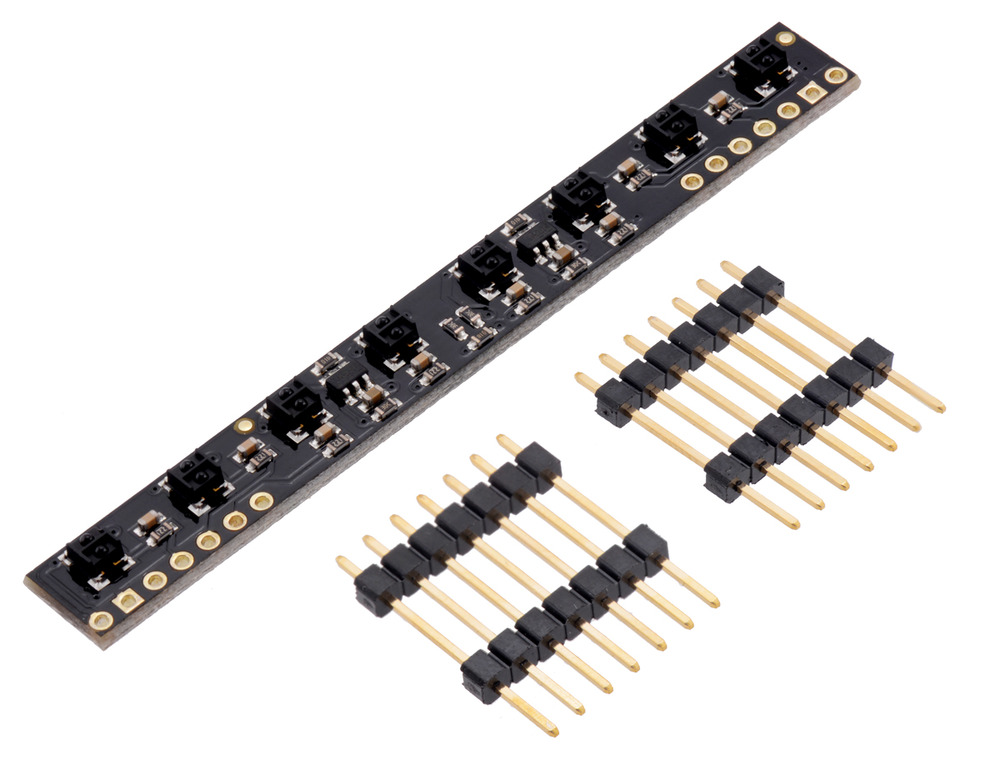

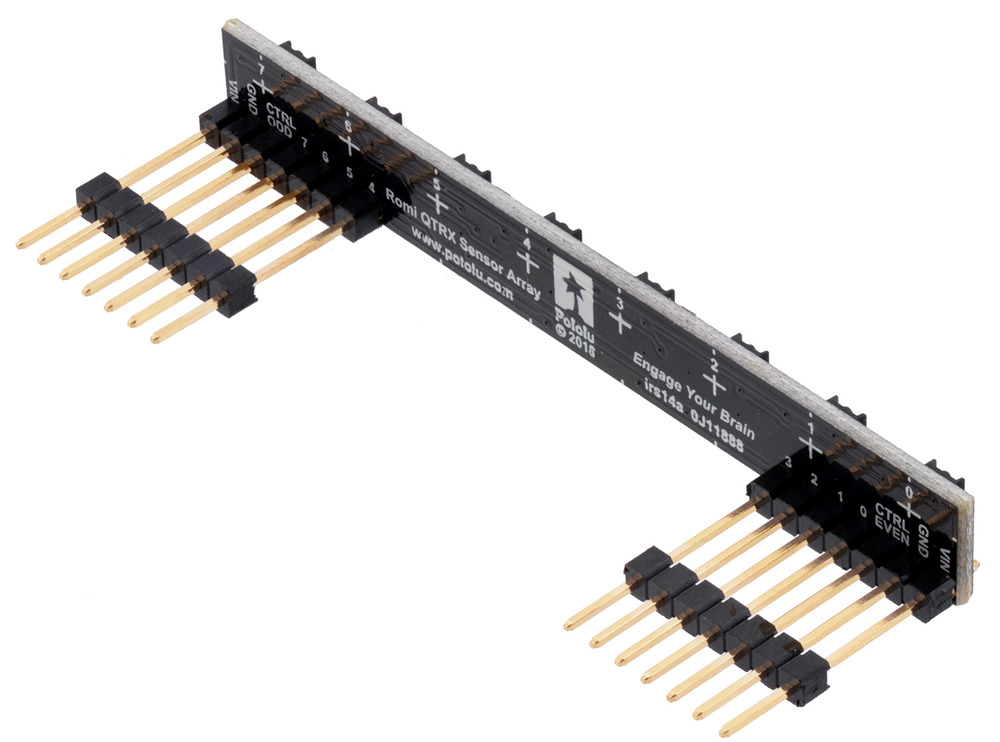

For those who enjoy tinkering and customizing their projects, this version requires soldering of the included extended male headers. This offers a hands-on experience for users looking to tailor their setup. Alternatively, a version with pre-soldered headers is available for those who prefer a plug-and-play solution.

In terms of specifications, the sensor array operates at a voltage range of 2.9 V to 5.5 V and supports digital I/O-compatible signals. It is lightweight, weighing just 4.2 grams with headers, making it an unobtrusive addition to any robot. The sensors' digital outputs can be read in parallel as timed high pulses, allowing for rapid data acquisition and processing.

To maximize efficiency, the sensors can be read in parallel, and the IR LEDs can be turned off when not needed, significantly reducing power consumption. This is particularly beneficial for applications where battery life is a concern, as it allows for extended operation without frequent recharging.

Overall, this sensor array is a powerful tool for anyone looking to enhance their robot's line-following capabilities, offering precision, efficiency, and customization options to suit a wide range of applications.
