31:1 Metal Gearmotor 20Dx41L mm 6V

Brand Pololu Model 3451 Schrijf een review Share
31:1 Metal Gearmotor 20Dx41L mm 6V

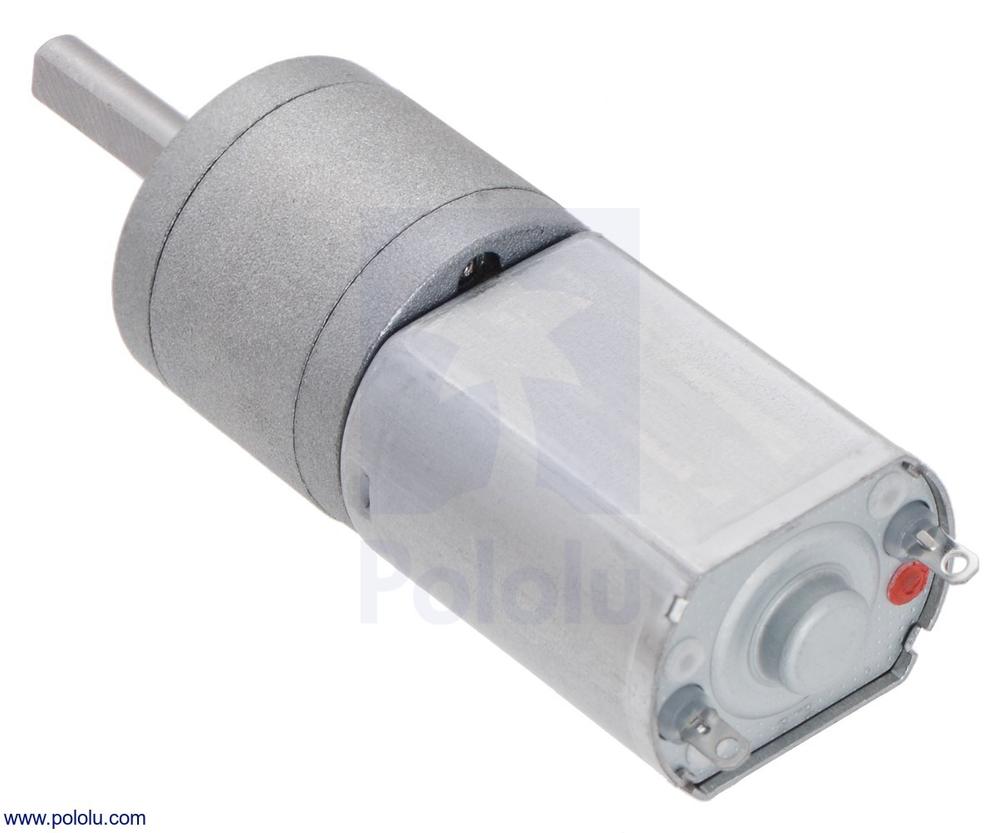

  • 20D mm metal gearmotor with precious metal brushes.

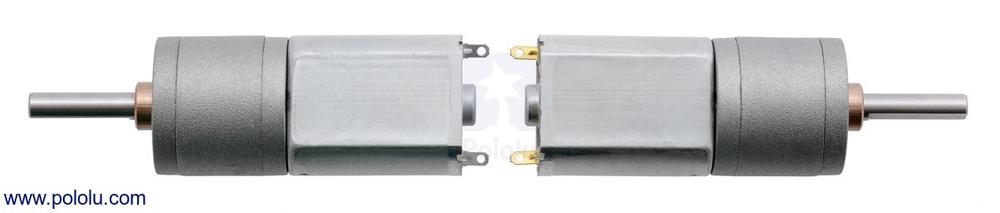

  • 20D mm metal gearmotor with precious metal brushes (left) next to a 20D CB version with long-life carbon brushes.
  • 20D mm metal gearmotor precious metal brushes (left) next to 20D 6V CB and 12V CB long-life carbon brushes.
  • 20D mm metal gearmotor CB with long-life carbon brushes.
  • 20D mm metal gearmotor CB with long-life carbon brushes.
  • 20D mm metal gearmotor with precious metal brushes.
  • 20D mm metal gearmotor with precious metal brushes and extended motor shaft.
  • 20D mm metal gearmotor with a univeral aluminum mounting hub and mounted on a 20D mm metal gearmotor bracket.

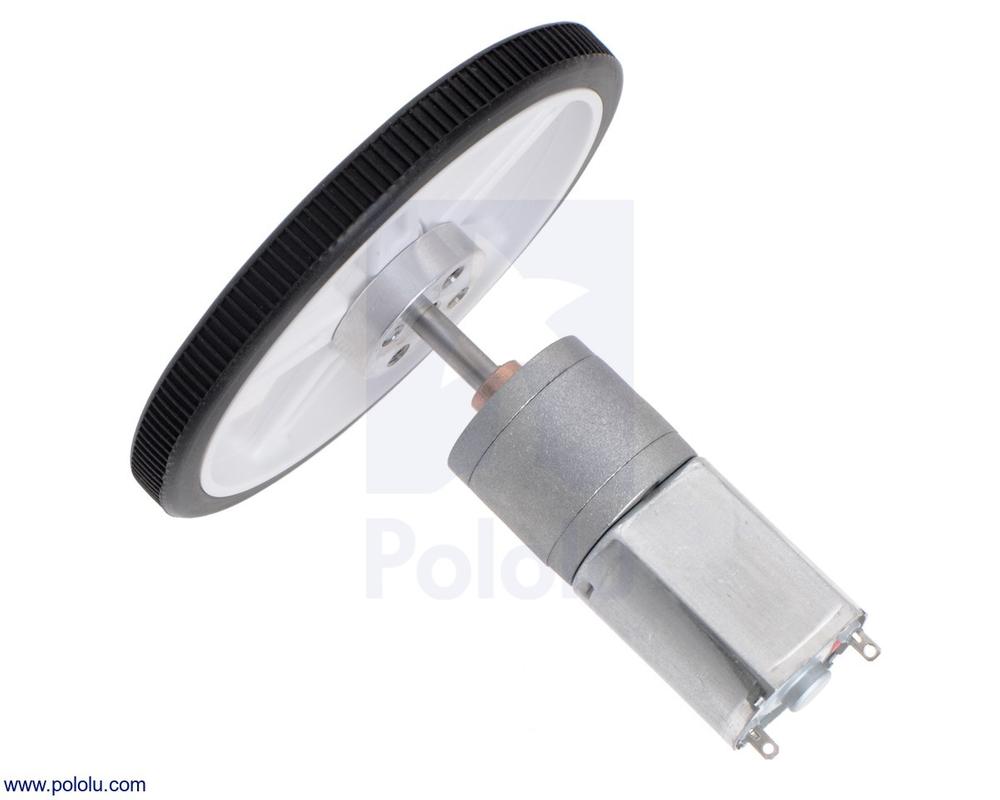

  • Pololu 70×8mm wheel mounted to a 20D mm metal gearmotor using a universal aluminum mounting hub for 4mm shafts.
  • Dagu Wild Thumper wheel 120x60mm (metallic red) with Pololu 20D mm metal gearmotor.
  • Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D mm metal gearmotor with extended motor shaft.
  • Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D mm metal gearmotor with extended motor shaft.
  • Dimensions of the Pololu 20D mm metal gearmotors.  Units are mm over [inches].  This diagram only applies to the listed gear ratios.
  • An assortment of Pololu metal gearmotors.
Pololu
Sold per piece
€ 17,20€ 17,20 Excl. BTW
Add to cart
Staffelkortingen weergeven
... Pieces In stock Need a larger number? Expected delivery date: Wednesday 6 October.
Shipped from  € 25,--United States
Bijna uitverkocht! Nog maar 5 pieces op voorraad.
+ + =
Frequently bought together Total price: Add to cart

Description Bijlagen

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 6V brushed DC motor combined with a 31.25:1 metal spur gearbox. The gearmotor is cylindrical with a diameter of 20 mm, and the D-shaped output shaft is 4 mm in diameter and extends 18 mm from the face plate of the gearbox. Key specs at 6 V: 470 RPM and 170 mA with no load, 28 oz-in (2.0 kg-cm) and 2.9 A at stall.
