SparkFun Constellation MicroMod Kit

The SparkFun Constellation MicroMod Kit is a unique limited edition offering, combining both MicroMod and Qwiic in one package. This kit includes a MicroMod ATP Carrier Board and MultiStar, a MicroMod Screw Driver, and two Qwiic Cables. The ATP Carrier Board and MultiStar feature a stylish matte black PCB with a star scape design in white silk.

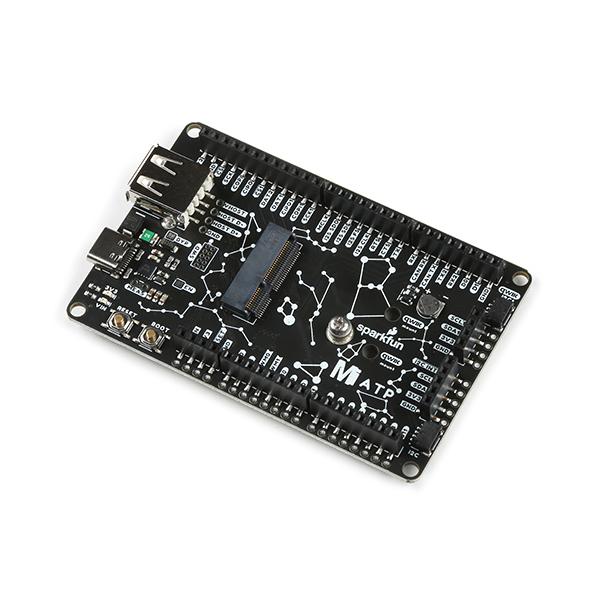

With the SparkFun MicroMod ATP Carrier Board, you can access all the pins of the MicroMod Processor Boards. This board breaks out the MicroMod Processor Board's pins on the M.2 connector to 2.54mm spaced female headers and PTH pads on the edge of the board. It's perfect for testing out different MicroMod Processor Boards for your application.

The ATP Carrier Board comes with a modern USB-C connector for easy programming. It has two separate Qwiic-enabled I2C ports for easy daisy chaining of Qwiic-enabled devices. SWD pins are exposed for advanced users who prefer professional tools. A USB-A connector is provided for Processor Boards that support USB Host. A backup battery is provided for processor boards with RTC. A convenient jumper is added to measure the current consumption for low power testing.

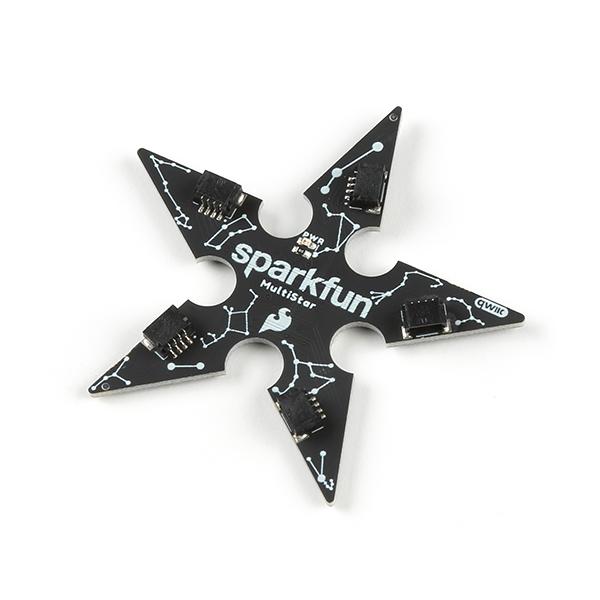

The SparkFun Qwiic MultiStar is a solution for those who have problems trying to daisy chain Qwiic-enabled boards with only one Qwiic connector. Once added, you can use it as a hub to add as many I2C devices to the bus as you need.

The MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error.

Kit Includes:

• 1x SparkFun Constellation MicroMod ATP Carrier Board
• 1x SparkFun Constellation Qwiic MultiStar
• 1x Qwiic Cable - 100mm
• 1x Qwiic Cable - 50mm
• 1x MicroMod Screwdriver

Features:

• ATP Carrier Board
• M.2 Connector
• Operating Voltage Range: ~3.3V to 6.0V (via VIN to AP7361C 3.3V Voltage Regulator), 3.3V (via 3V3)
• Ports: 1x USB type C, 1x USB type A Host, 2x Qwiic Enabled I2C, 1x CAN, 1x I2S, 2x SPI, 2x UARTs, 2x Dedicated Analog Pins, 2x Dedicated PWM Pins, 2x Dedicated Digital Pins, 12x General Purpose Input Output Pins, 1x SWD 2x5 header
• 1mAh battery backup for RTC
• Buttons: Reset, Boot
• LEDs: Power, 3.3V
• Phillips #0 M2.5x3mm screw included
• Qwiic MultiStar
• 5x Qwiic Connectors
• 5x Large Mounting Points
• Matte Finish
